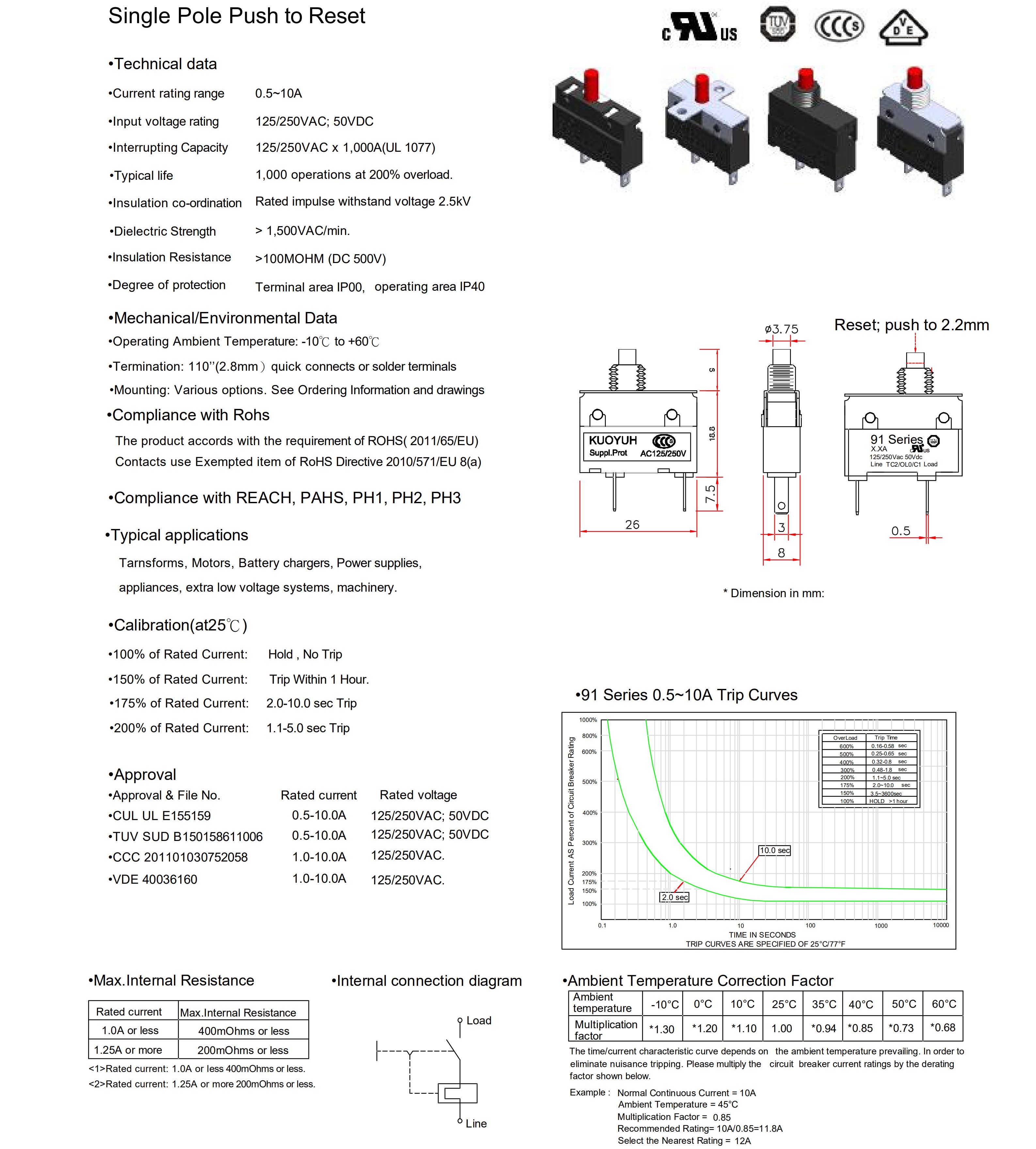

91 Series Thermal Circuit Breaker-
產品規格
額定電流:0.5A-10A
輸入電壓(lnput Power):125VAC/250VAC/50VDC50-60Hz
耐電壓強度(Withstand voltage strength):1500VAC/1min,漏電電流≤0.5mA
(1500VAC/min,the leaked current is less than ≤0.5mA)
絕緣電阻(lnsulationResistance):500VDC1Min≥100M2
額定短路能力(Rated short_circuit capacity):125VAC/1000A，250VAC/1000A
額定通斷能力(Rated breaking capacity):1.5倍額定電流
(1.5 times rated current)
復位方式(Reset):手動復位(Manual Push Reset)
脫扣特性(Tripping characteristics)
測試環境溫度(The test environment temperature):25C±3C
額定電流200%(200% of Rated Current):2-28s”內脫扣
(2-28s" Seconds Trip)
額定電流150%(150%of RatedCurrent):一個小時內脫扣
(Trip within 1 Hour)
額定電流100%(100%of Rated Current):保持不脫扣(Hold,NoTrip)
應用領域
適用各類電機，馬達、水泵、空壓機、清洗機、電動工具、攪拌機、家用電器、發熱電器等……
Apply to all kinds of motor, motor, water pump,
air compressor, washing machine,
electric tools, mixer, household
appliances, heating appliances, etc...
